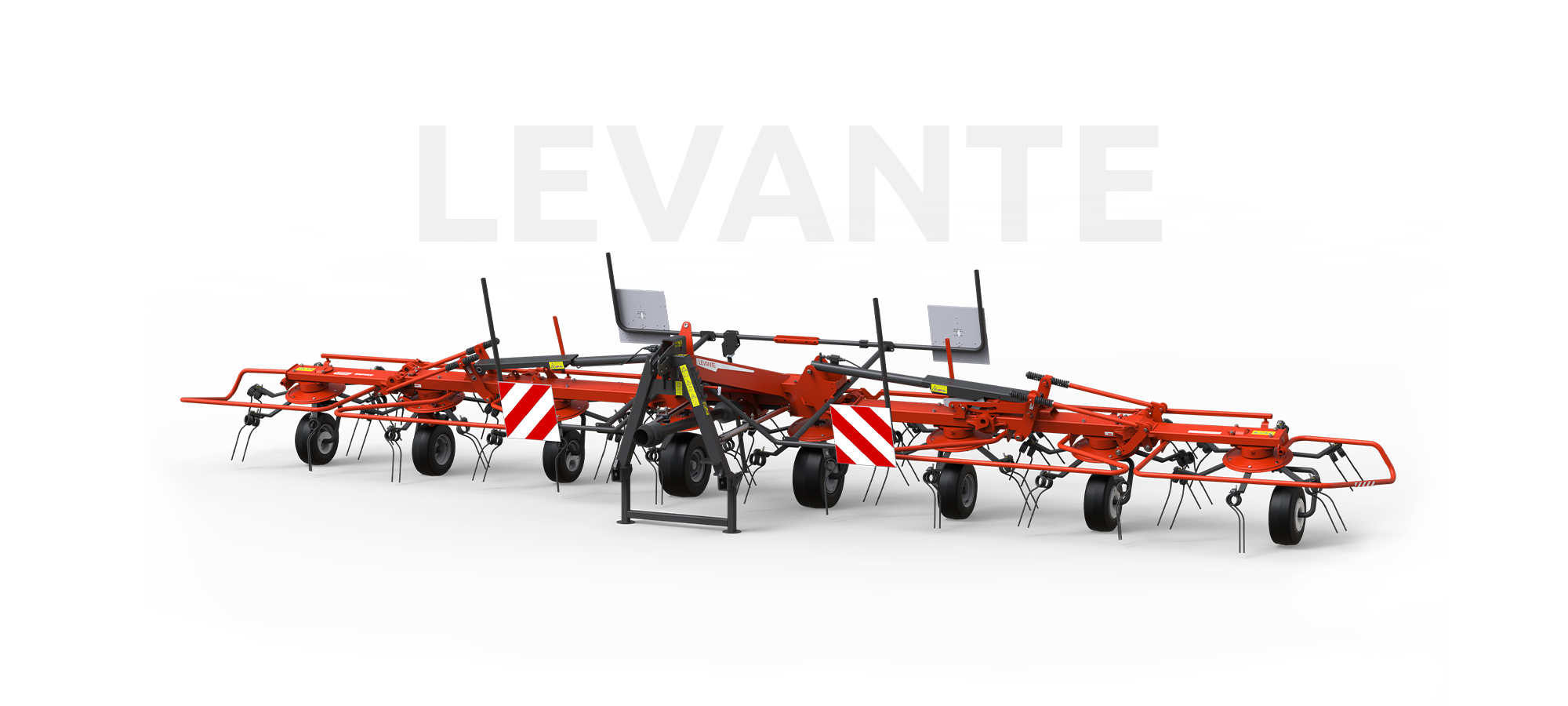

LEVANTE

Tedder

The new tedder

TECHNICAL DATA
Measure 690760880
Min power HP
68 HP
82 HP
82 HP
Working width
6,9 m
7,6 m
8,8 m
N. of rotors
6
6
8
Transport width
2,95 m
2,95 m
2,95 m
PTO rotation rpm
540 std
540 std
540 std
N. of arms
6
7
6
Weight
928 kg
1.034 kg
1.442 kg
STANDARD DOTATION
PTO 540 rpm PTO shaft (tractor side yoke 1" 3/8 Z6) Articulated 3-point hitch head Hydraulic folding Hydraulic end-field lifting system VERSION 690 Mechanical control of border spreading Diameter rotor 1,5 m Asymmetric teeth with inclination adjustment at 2° or 8° Double teeth with safety lock, thickness 9 mm Required distributors: 1 single effect VERSION 760 Mechanical control of border spreading Diameter rotor 1,65 m Asymmetric teeth with inclination adjustment at 2° or 8° Double teeth with safety lock, thickness 9,5 mm Required distributors: 1 single effect VERSION 880 Reinforced frame, 100x160 mm Hydraulic control of border spreading Diameter rotor 1,5 m Anti-wrapping disc for wheels Rotors featuring gears lubricated and protected within a sealed casing Anti-loss tooth safety system Double teeth with safety lock, thickness 10 mm Configuration for working on slopes light kit Required distributors: 1 single effect, 1 double effect
