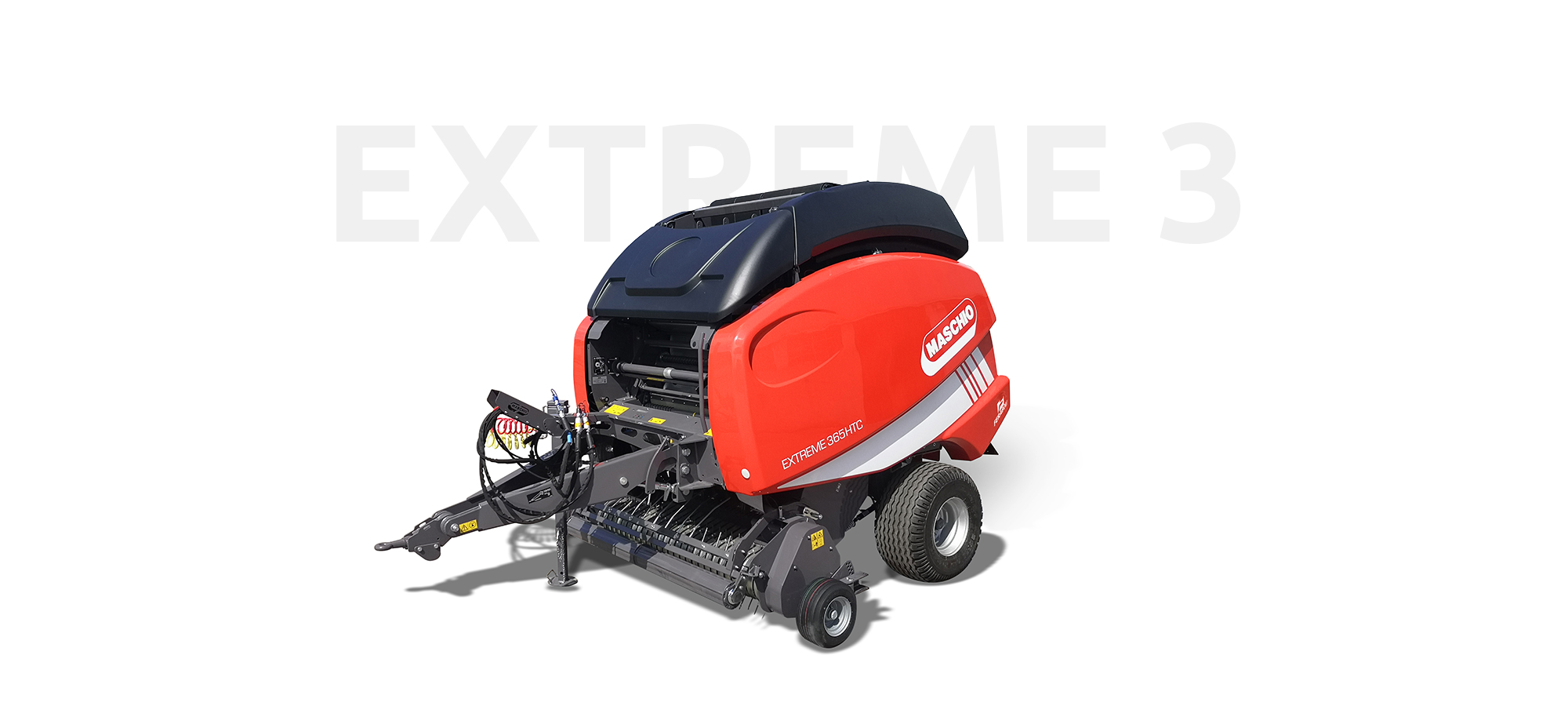

EXTREME 3 is the round baler with variable chamber and geometry, synthesis of high performances and maximum attention to product collection. The double rocker arm system, for the variable chamber and geometry management, with pressure up to 210 bar, allows to collect any type of product and level of humidity, for optimal storage.
Exceptional durability, great working capacities, perfectly formed, compact and heavy bales up to 165 cm diameter make EXTREME 3 a profitable investment, also thanks to the possibility of setting it up with 4 feeding systems.
The variable chamber management is made possible by a double rocker arm controlled by hydraulic cylinders. The first defines the pressure and the diameter of the bale with the possibility of creating a pre-chamber with zero pressure up to 90 cm, while the second rocker automatically compensates the tension of the four ENDLESS clinched belts during the formation of the bale. This allows to obtain enormous advantages for those who are attentive to the product quality.
The large 220 cm pick-up with pivoting wheels allows to operate even in the presence of not perfectly regular and abundant windrows. The harvest of the product is delicate with any type of forage, even in the case of leafy product. The machine is standard equipped with a windrow press roller.
To respond to the various needs of contractors who stress machines for long time, EXTREME 3 is equipped with 1 ”¼ reinforced chains capable of withstanding the heaviest stresses. The automatic chain oiling system ensures a machine that is always well greased and performing.
EXTREME series 3 is versatile, in fact there are 3 feeding systems that can be requested: HTR rotary feeder, HTC rotary feeder with 15 knives and HTU rotary feeder with 25 knives. The stars of all rotors are made of high strength HARDOX, to minimise wear during work.
Designed for true professionals, EXTREME 3 is equipped with 4 ENDLESS belts, thanks to which optimal resistance is ensured in any condition, even at high pressures and speeds. Covering the entire width of the bale during formation reduces product losses and preserves its quality. The two motorized rollers ensure perfect rotation of the belts even in the case of very wet product.
EXTREME 3 ISOTRONIC is the latest generation version, updated with ISOBUS communication protocol. All work parameters can be conveniently managed from the ISOBUS terminal in the tractor in a simple and intuitive way. A state-of-the-art piece of equipment for both forage farms and the most demanding contractor.
Being able to keep the balance in an elevated position and create the pre-chamber provides enormous advantages.
The low pressure in the middle part of the bale allows excess moisture to escape, helping to disperse heat in the event of fermentation.
The pre-chamber enhances the quality of the product and provides enormous advantages:
- Versatility in managing the type of product, even according to the level of humidity;
- Optimal conservation of nutritional and protein qualities;
- Efficient evaporation of humidity;
- Limited formation of mould and abnormal fermentation.
To increase productivity in the field and reduce possible downtime, the EXTREME 3 series was designed with an opening bottom. This system, which temporarily increases the size of the machine's feeding mouth, allows any blockages due to excess product to be resolved quickly, facilitating the work of the operator who can manage and solve the problem from the tractor cab.

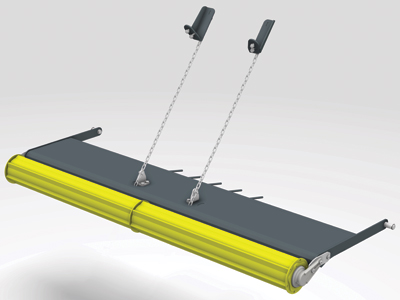

Available as a standard feature, the swath press roller has the function of keeping the product flow to the feeding system homogeneous and constant, reducing possible clogging.
Each blade is independent and has a spring-loaded safety system, which intervenes during collision with foreign materials, mainly stones, without damaging the cutting system (HTC - HTU version).
Automatic chain lubrication is managed by an oil pump that is mechanically activated every time the tailgate is closed.
This system allows the entire round baler to be lubricated on both sides by just two grease nipples, so that you can work with a high-performance machine at all times and reduce downtime. An automatic centralized greasing system is available on request.
EXTREME 3 complies with the Mother Regulation with equipment without a braking system or with an air or dual-line oil brake system. All this allows proper and safe road transport of the equipment.
MASCHIO GASPARDO acquired the company Officine Meccaniche Feraboli S.p.A. in 2014.
Designed for true professionals EXTREME 3 combines in one single machine robustness and high baling qualities up to 210 bar. The variable chamber, with the possibility of creating a zero pressure pre-chamber, allows to collect different types of product and with different levels of humidity, with an always optimal yield. The ENDLESS belts help to ensure a long life-span to this machine.
| Measure | 365 HTC | 365 HTR | 365 HTU |
| Min power HP | 108 HP | 95 HP | 108 HP |
| Bale width | 1,2 m | 1,2 m | 1,2 m |
| Min bale diameter | 0,5 m | 0,5 m | 0,5 m |
| Max bale diameter | 1,65 m | 1,65 m | 1,65 m |
| Pick-up width | 2,2 m | 2,2 m | 2,2 m |
| Bale formation | Belts | Belts | Belts |
| Feeder | HTC rotor | HTR rotor | HTU rotor |
| Weight | ≥ 3.550 kg | ≥ 3.470 kg | ≥ 3.657 kg |
| Measure | 365 HTC | 365 HTR | 365 HTU |
| Min power HP | 108 HP | 95 HP | 108 HP |
| Bale width | 1,2 m | 1,2 m | 1,2 m |
| Min bale diameter | 0,5 m | 0,5 m | 0,5 m |
| Max bale diameter | 1,65 m | 1,65 m | 1,65 m |
| Pick-up width | 2,2 m | 2,2 m | 2,2 m |
| Bale formation | Belts | Belts | Belts |
| Feeder | HTC rotor | HTR rotor | HTU rotor |
| Weight | ≥ 3.550 kg | ≥ 3.470 kg | ≥ 3.657 kg |
