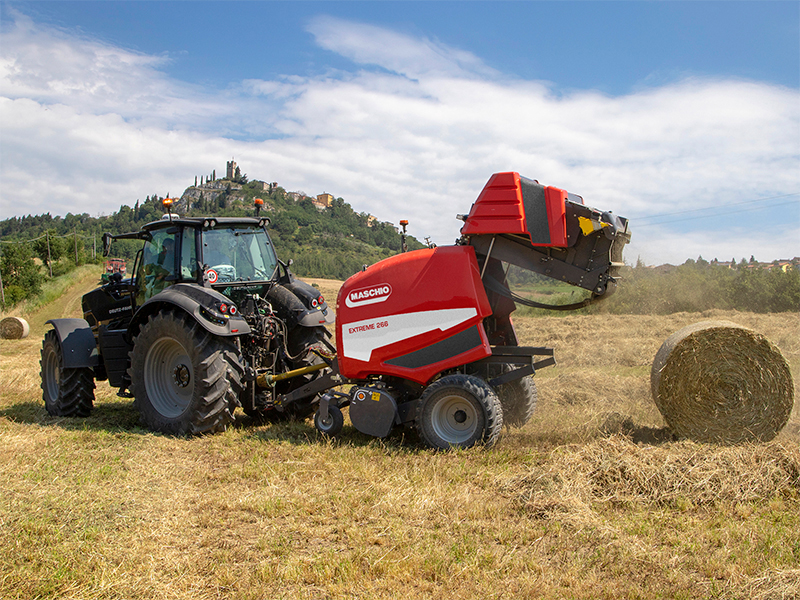

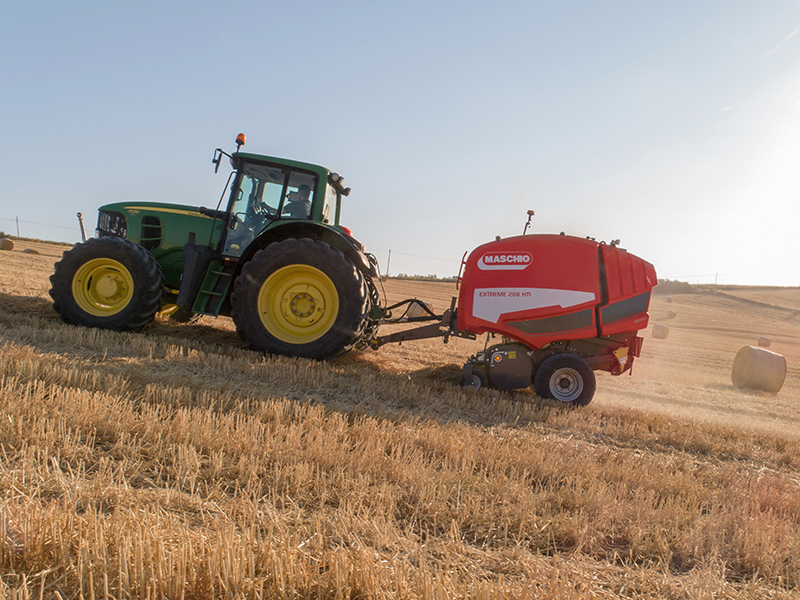

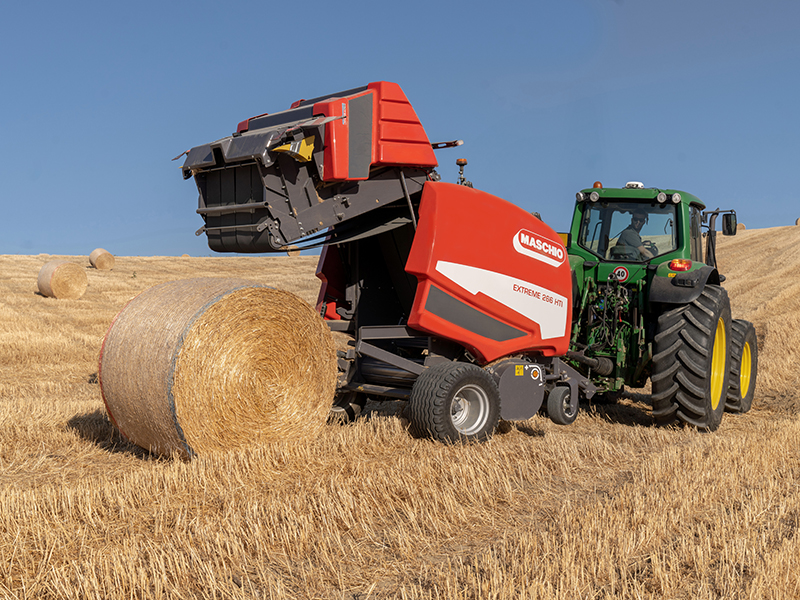

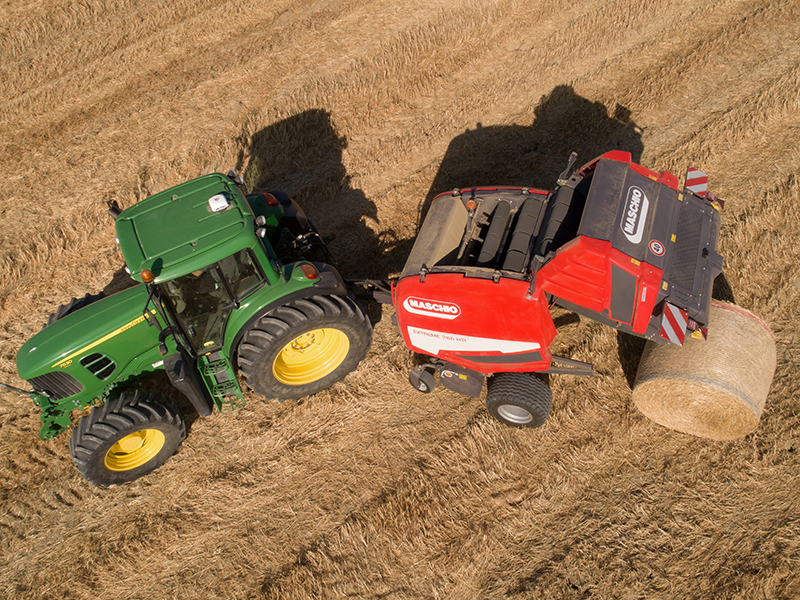

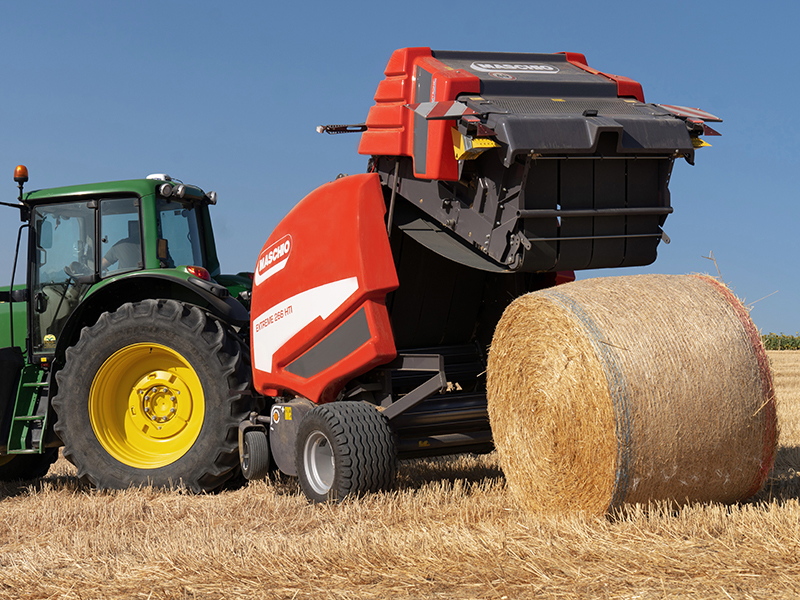

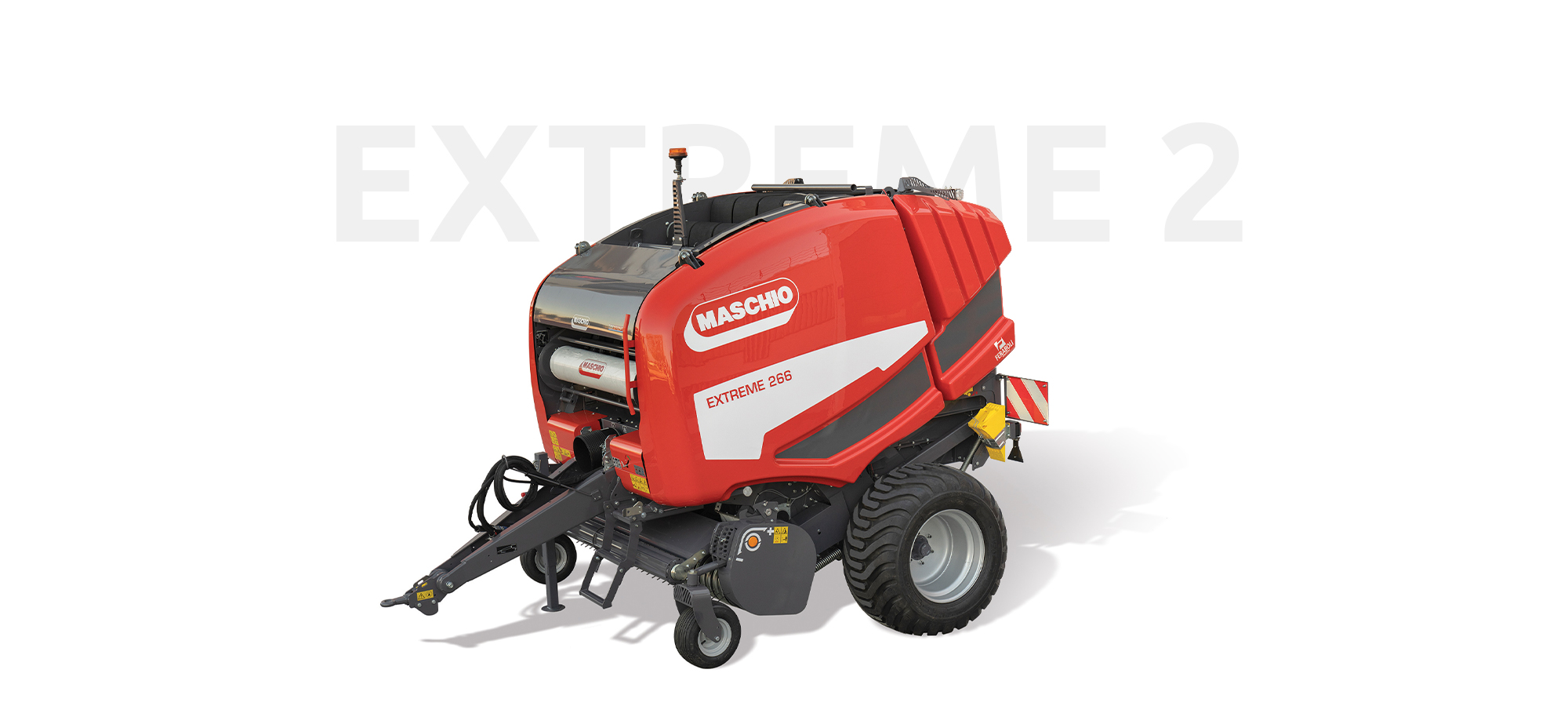

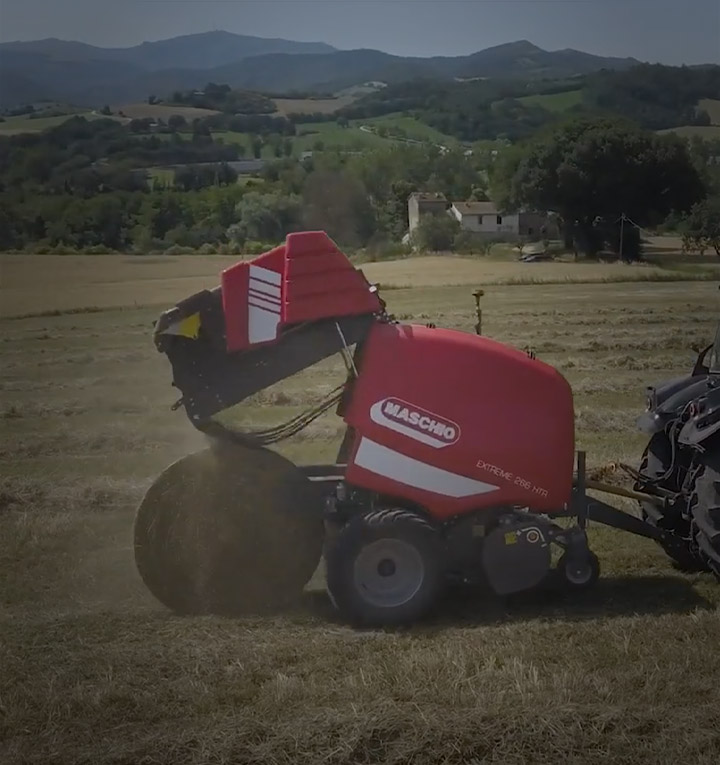

EXTREME 2 is the new hybrid round baler with variable chamber and variable geometry that combines the winning characteristics of both fixed and variable chamber round balers. The machine has been designed to guarantee the greatest combination of shapes, pressures (up to 210 bar) and bale sizes up to 180 cm. EXTREME 2 offers a perfect balance between high performance and maximum ease of use, which makes it suitable for all types of farms.

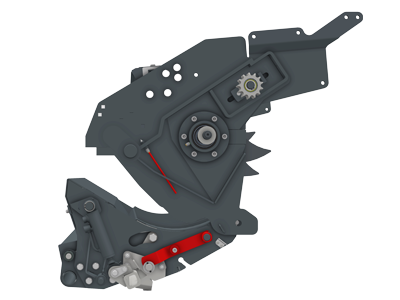

The geometry management within the variable chamber is made possible by a double rocker arm controlled by hydraulic cylinders. The first defines the pressure and the diameter of the bale with the possibility of creating a pre-chamber with zero pressure up to 1,1 m, while the second rocker automatically compensates the tension of the four clinched belts of width 277 mm during the formation of the bale. This allows to obtain enormous advantages for those who are attentive to the product quality.
The large 2,2 m pick-up with pivoting wheels allows to operate even in the presence of not perfectly regular and abundant windrows. Harvest of the product is delicate with any type of forage, even in the case of leafy product. The machine can be equipped with a windrow press roller.
EXTREME series 2 series is polyvalent, in fact there are 4 feeding systems that can be requested: HTI with alternative feeder, HTR rotary feeder without cutting, HTC rotary feeder with 13 knives and HTU rotary feeder with 25 knives. The stars of all rotors are made of high strength steel, to minimise wear during work.
EXTREME 2 ISOTRONIC is the latest generation version, updated with ISOBUS communication protocol. All the working parameters can be managed directly in a simple and intuitive way from the ISOBUS terminal in the tractor. A state-of-the-art equipment for both forage farms and the most demanding contractor
Being able to keep the balance in an elevated position and create the pre-chamber provides enormous advantages.
The low pressure in the middle part of the bale allows excess moisture to escape, helping to disperse heat in the event of fermentation.
The pre-chamber enhances the quality of the product and provides enormous advantages:
To increase productivity on field and reduce possible downtime, EXTREME 2 has been designed with a new drop floor. This system, which temporarily increases the size of the machine's inlet, allows to quickly solve any blockages due to product excess, facilitating the work of the operator, who can manage and solve the problem from tractor cab.
Available as standard, the crop roller has the function of maintaining a homogeneous and constant flow of product towards the feeding system, reducing possible clogging.

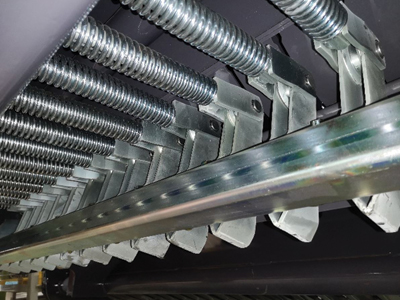

Each blade is indipendent and equipped with a spring safety system which intervenes during the collision with foreign material, mainly stones, without damaging the cutting system (HTC -HTU version).
Automatic chain lubrication is managed by an oil pump that is mechanically activated every time the tailgate closes.
This system allows, by means of only two grease guns, to lubricate the whole baler on both sides, in order to operate with a high-performance equipment and to reduce possible machine stops.
EXTREME 2 complies with the Mother Regulation with equipment without braking system or with air or oil dual-line braking system. All this allows a correct and safe road transport of the equipment.
MASCHIO GASPARDO acquired the company Officine Meccaniche Feraboli S.p.A. in 2014.
With EXTREME 2 it is possible to collect different types of product, both dry and wet, thanks to its versatility, with the variation of the chamber pressure (up to 210 bar) and the possibility of creating a zero pressure pre-chamber. All working parameters can be easily managed from the terminal in the cabin. A modular and versatile round baler thanks to the 4 different feeding types, ideal for all farms.
| Measure | 266 HTC | 266 HTI | 266 HTR | 266 HTU | 286 HTC | 286 HTI | 286 HTR | 286 HTU |
| Min power HP | 65 HP | 65 HP | 65 HP | 65 HP | 70 HP | 70 HP | 70 HP | 70 HP |
| Bale width | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m |
| Min bale diameter | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m |
| Max bale diameter | 1,65 m | 1,65 m | 1,65 m | 1,65 m | 1,8 m | 1,8 m | 1,8 m | 1,8 m |
| Pick-up width | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m |
| Bale formation | Belts | Belts | Belts | Belts | Belts | Belts | Belts | Belts |
| Feeder | HTC rotor | Alternative feeder HTI | HTR rotor | HTU rotor | HTC rotor | Alternative feeder HTI | HTR rotor | HTU rotor |
| Weight | ≥ 3.520 kg | ≥ 3.000 kg | ≥ 3.300 kg | ≥ 3.540 kg | ≥ 3.634 kg | ≥ 3.010 kg | ≥ 3.330 kg | ≥ 4.064 kg |
| Measure | 266 HTC | 266 HTI | 266 HTR | 266 HTU | 286 HTC | 286 HTI | 286 HTR | 286 HTU |
| Min power HP | 65 HP | 65 HP | 65 HP | 70 HP | 70 HP | 70 HP | 70 HP | 70 HP |
| Bale width | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m | 1,2 m |
| Min bale diameter | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m | 0,5 m |
| Max bale diameter | 1,65 m | 1,65 m | 1,65 m | 1,65 m | 1,8 m | 1,8 m | 1,8 m | 1,8 m |
| Pick-up width | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m | 2,2 m |
| Bale formation | Belts | Belts | Belts | Belts | Belts | Belts | Belts | Belts |
| Feeder | HTC rotor | Alternative feeder HTI | HTR rotor | HTU rotor | HTC rotor | Alternative feeder HTI | HTR rotor | HTU rotor |
| Weight | ≥ 3.410 kg | ≥ 2.940 kg | ≥ 3.320 kg | ≥ 3.550 kg | ≥ 3.634 kg | ≥ 3.000 kg | ≥ 3.462 kg | ≥ 4.064 kg |
