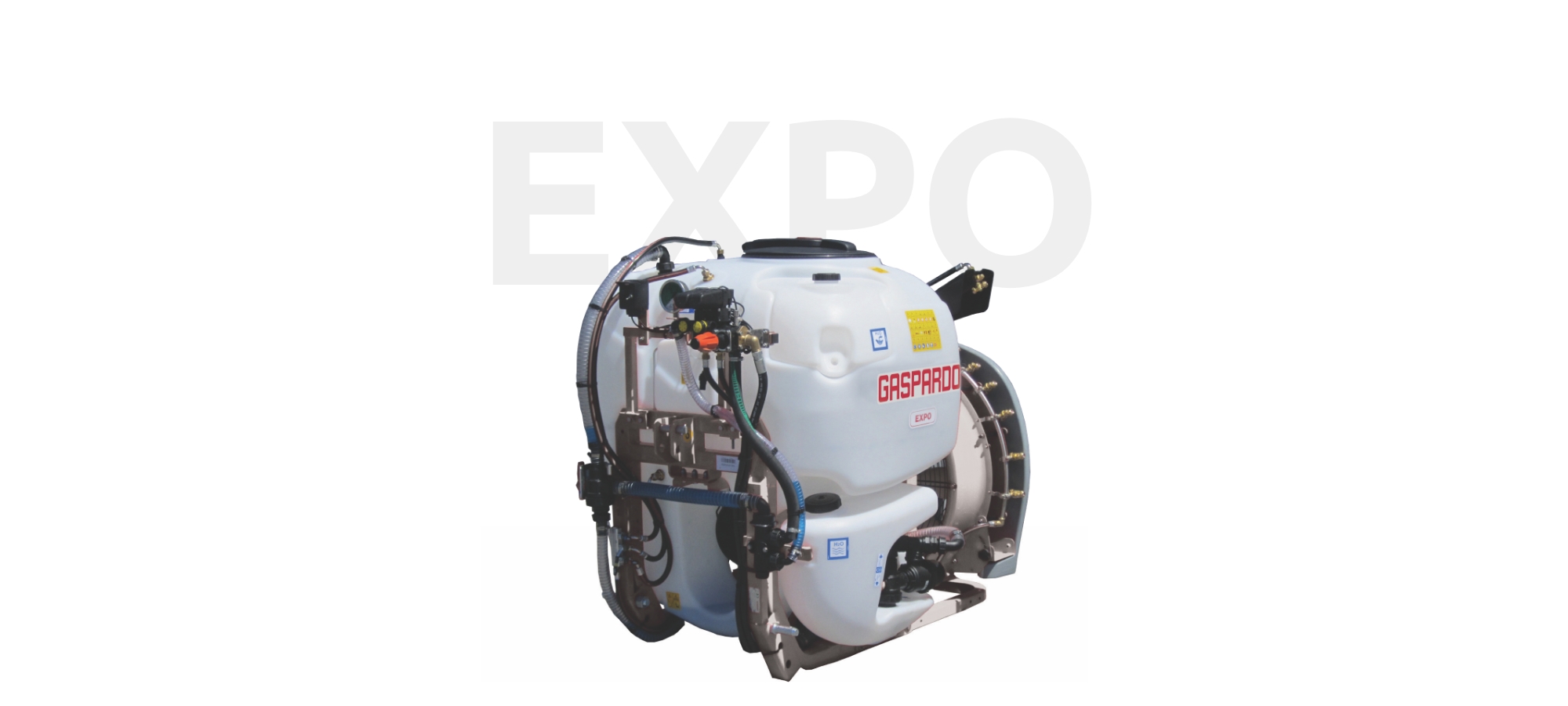

Mounted centrifugal mistblower

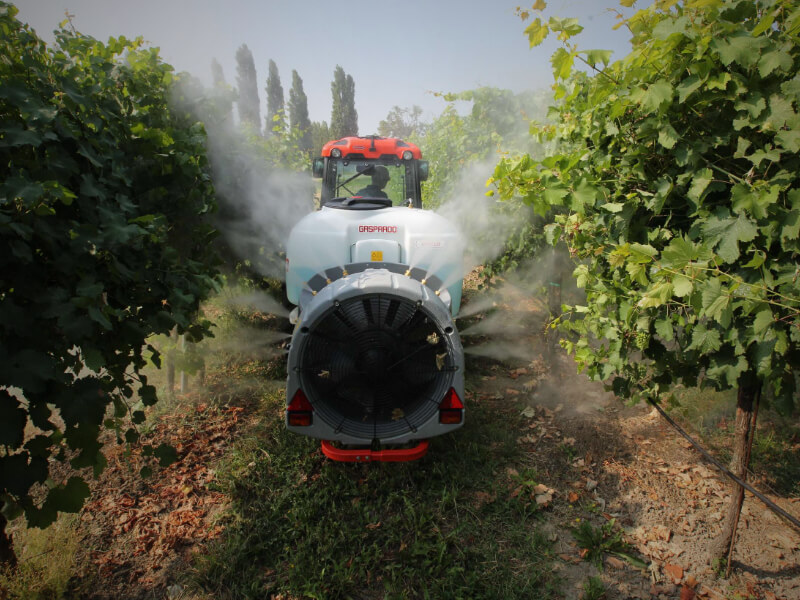

EXPO introduces the segment of MASCHIO GASPARDO mounted mistblowers. Characterised by a compact design and a remarkable lightness, EXPO is ideal for working very narrow row or canopy crops. The tank capacity of up to 600 L in combination with the different types of fans available, which ensure the product is efficiently transported up to the area to be treated, always make it possible to find the most suitable solution to your needs.

Tank capacity
329 - 634 L
Circuit rinse tank capacity
30 - 45 L
Max working pressure
40 bar
Fan diameter
700 mm

Quality materials

The mounted mistblowers are subjected to strong vibrations and structural stress. The continuous movement of the liquid creates continuous inertia especially in hilly environments where vineyards and orchards are often located, situations that greatly stress the tank and the frames. For this reason, the construction components and materials used have been carefully studied to ensure sturdiness and low maintenance over time. The high-strength steel frame ensures high corrosion resistance thanks to the hot-dip galvanisation treatment. The high density polyethylene tanks ensure structural strength, low weight and high resistance to UV rays.

Maximum drift reduction

EXPO can be combined with a wide range of nozzles, including some anti-drift. In the latter, air is injected during the spraying of the mixture, weighing down the droplets formed and minimising the possibility of being carried away by the wind. To increase treatment coverage and further reduce the risk of diffused pollution, the ELECTROSTATIC kit is available on request which, thanks to the electrodes placed at the air diffuser outlet, positively charges the droplets of the phytoiatric product flow so that they are attracted to vegetation naturally provided with negative charges.

Highly customisable

EXPO can be equipped with three different fan units: AVANT with front suction, POST and JET with rear suction, the latter with a plastic structure. This wide choice makes it possible to adapt mistblower to different conditions and types of crops. Different electric control units are available on request to ensure greater operator comfort and safety, which allow a total functional control from the machine or directly from the tractor cab.

Special contents
FAN UNITS
FAN UNITS
  1. AVANT: Assembly with front suction in which the flow is directed to the back, eliminating the re-suction of the phytoiatric mixture, thus limiting the suction of leaves and debris and moving the operator away from the atomised flow. The straightening vanes and the bi-flow deflector offer better distribution and there are no increases in total width compared to a traditional assembly.

  2. JET: Rear suction assembly with a sound-absorbing polyethylene structure. Its features are lightness and silence, resistance to aggressive products and greater efficiency in the wider rows (> 3 meters).

JETS-NOZZLES
JETS-NOZZLES

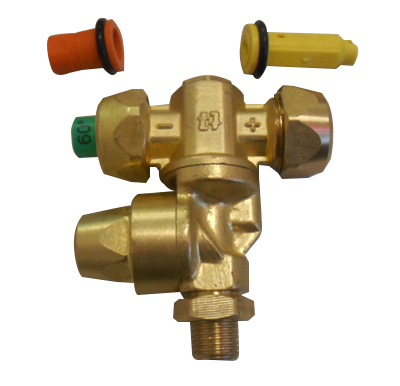

The twin (or single) jets made of brass have three opening positions, quick rotating closure and are equipped with drip-saver valve. Colour coded ISO nozzles are available in different sizes for low, medium or high volume treatments. Made of ceramic, they offer excellent abrasion resistance and empty cone dispensing with a 60° or 80° angle depending on the model.

TECHNICAL DATA
Measure 300400600
Real tank capacity
329 l
423 l
634 l
Circuit rinse tank capacity
0 l
0 l
45 l
Fan group
POST
POST
POST
Fan diameter
600 mm 9 blades
600 mm 9 blades
700 mm 9 blades
Weight
≥ 220 kg
≥ 213 kg
≥ 320 kg
STANDARD DOTATION
Hot dip galvanized frame Bumper protection (only 300-400-600) 2 ways manual pressure regulator Comet pump Total emptying polyethylene tank Hinged lid with bayonet joint Circuit rinse tank integrated with rotating rinse tank jet (only 600) Inspectionable external suction filter with filling connection Hydraulic tank agitator Deviokit: circuit rinse system even with full tank (only 600) Top deflectors without jets Stainless steel rod holders 10 jets for Ø600 fan 12 jets for Ø700 fan 14 jets for Ø800 fan Anti-drip double brass quick shut off jets with nozzles Nozzles HCI 60-015 green in ceramic Nozzles HCI 60-03 blue in ceramic
