Why choose DELFINO DL - DELFINO SUPER
DELFINO can be used both for crops with very narrow rows such as vineyards and orchards and for open field crops (SUPER version) by farms that do not have medium power tractors available.
DELFINO DL - International

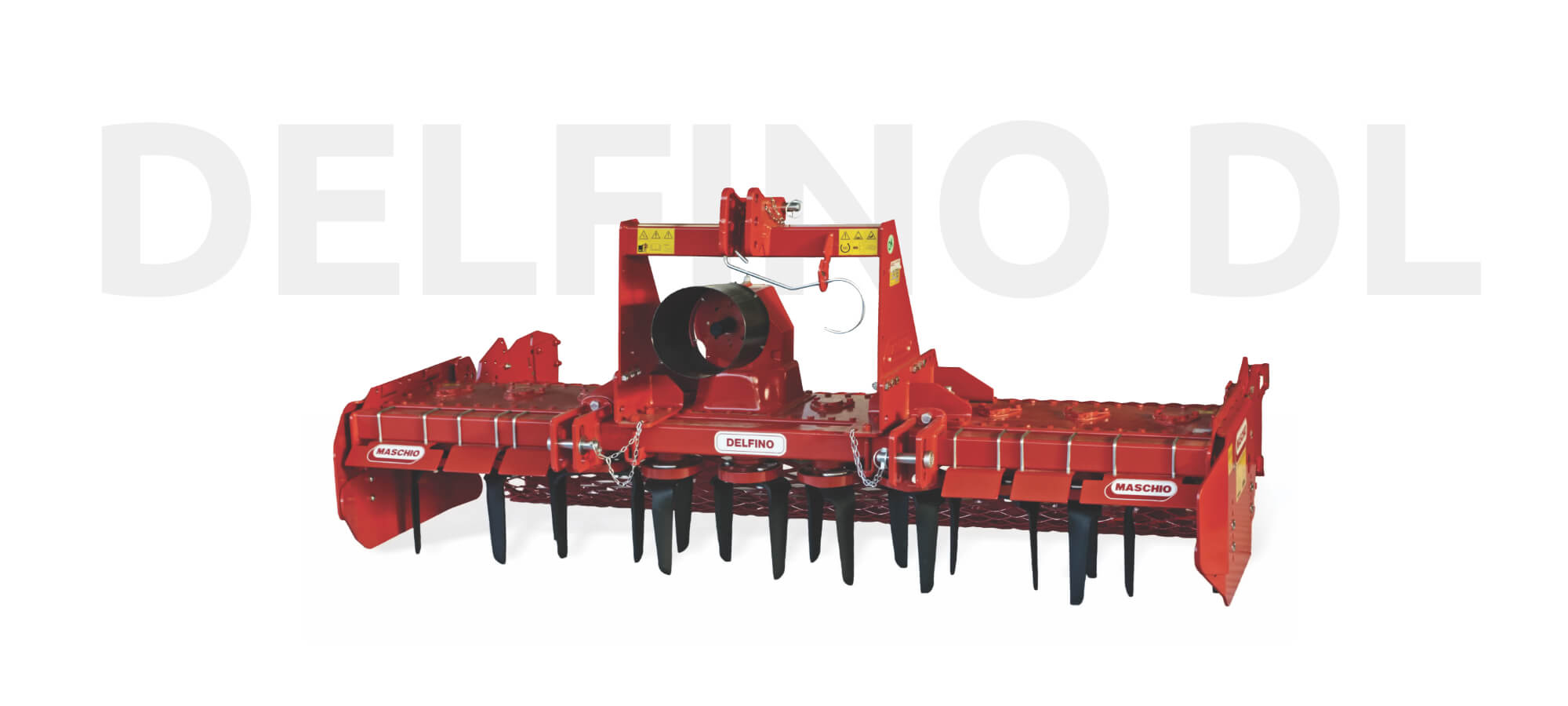

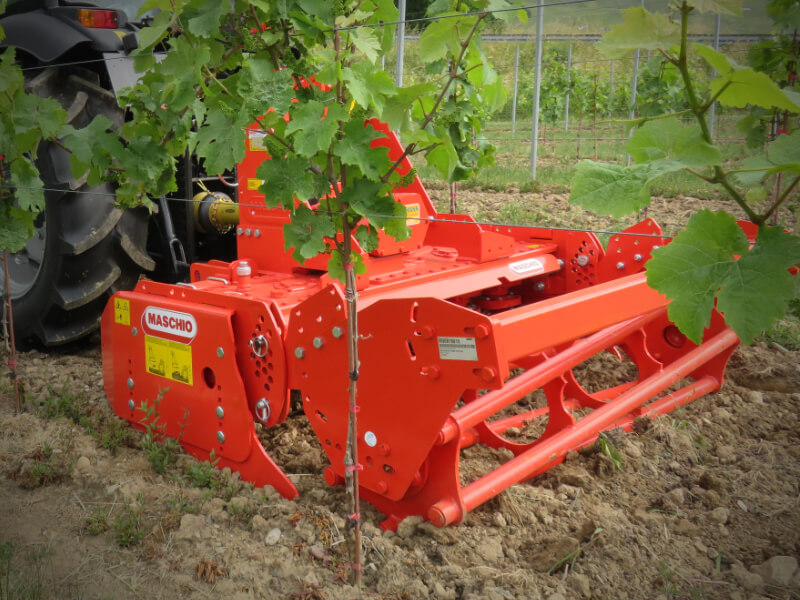

DELFINO DL
Power harrow with rigid frame
The special attention given to the overall dimensions and lightweight make DELFINO DL and DELFINO SUPER power harrows suitable for small farms and for tilling soil in specialised cultivations such as market gardening and viticulture. Combinable with low power tractors, starting from only 30 HP, they are suitable for very narrow row spacing crops even in combination with seed drills for row seeding.
Power required
30 -130 HP
Working width
1,3 - 3 m
Number of blades
10 - 24
Working depth
24 cm

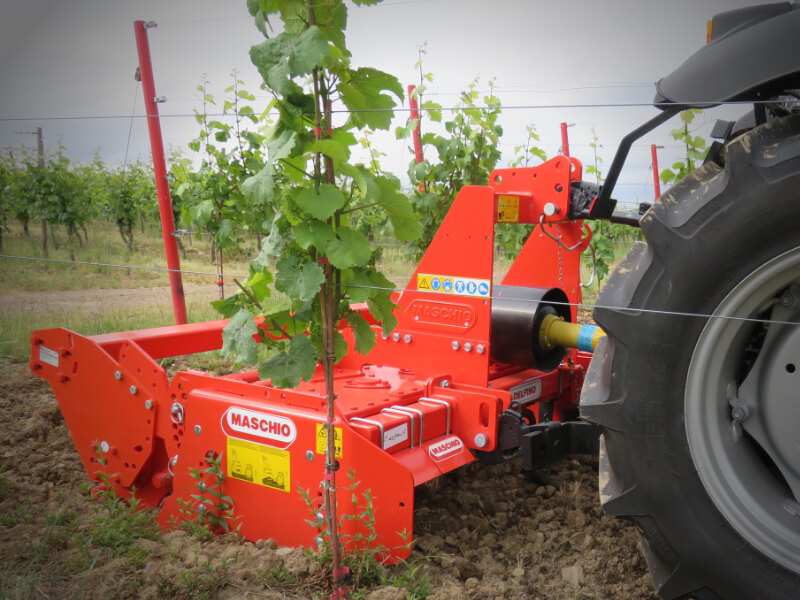

Robust and compact
The robust frame for coupling with the tractor, the dampened side protections, the roller depth adjustment via pins and the characteristic drawing of the tines ensure a constant refinement of the ground over time, with a superior class machine strength.
PLUS kit is available as an optional to make it compatible even with stony environments.
Quality at the highest MASCHIO levels

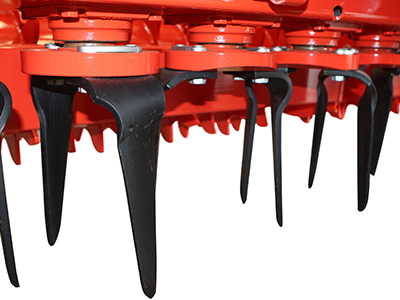

The transmission and working parts are made with top quality materials and automated and high-precision production processes. The rotor shafts with tine support are turned by a single high-strength steel forged piece. The tines are forged with tempered boron steel and machined in highly automated lines. Their profile is specially designed to maximise soil refinement in all conditions.
The levelling bar is available as optional for professional soil refinement.

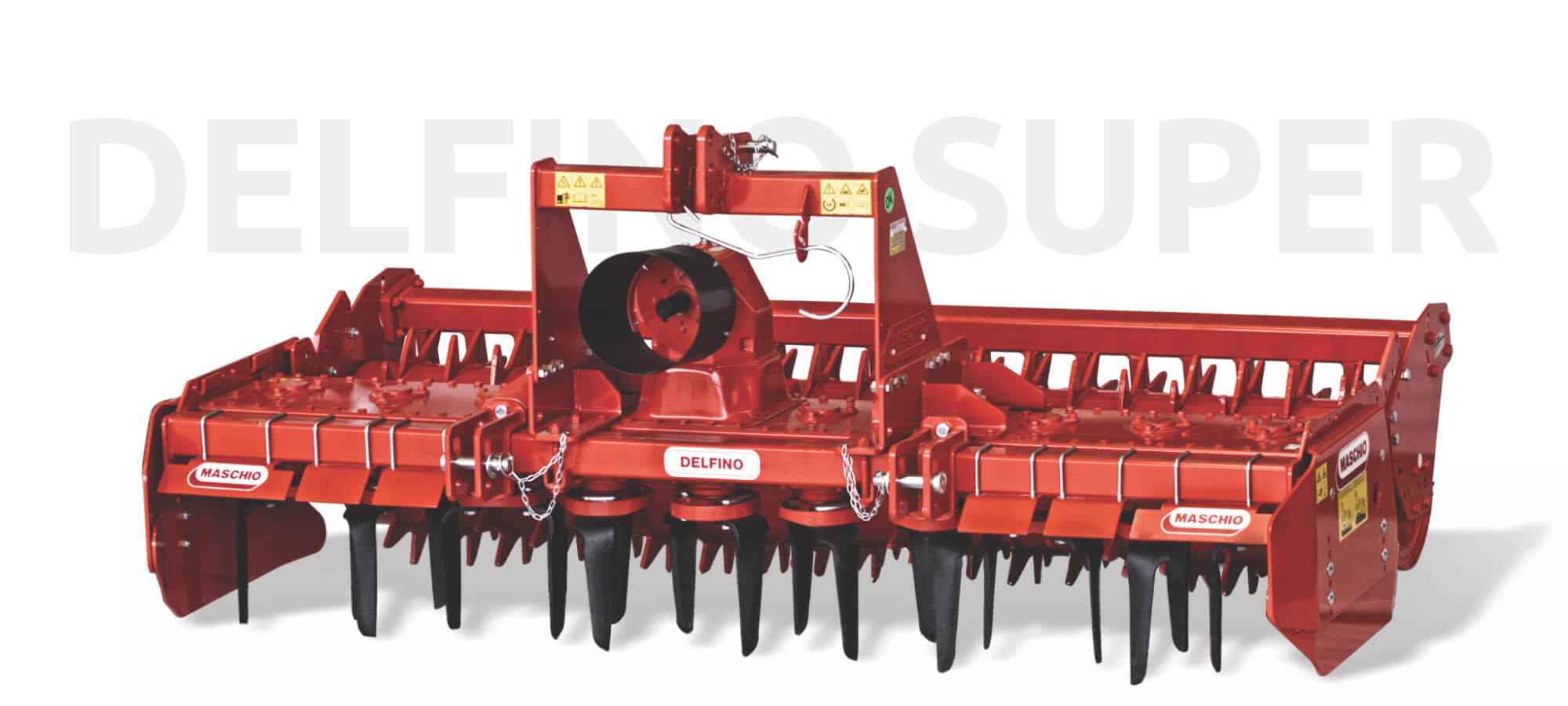

DELFINO SUPER version
The SUPER version extends the model to three larger sizes, up to 3 m wide. The rotation speed of the rotor rises to 352rpm making DELFINO SUPER effective even on medium textured soils or with the presence of residue.

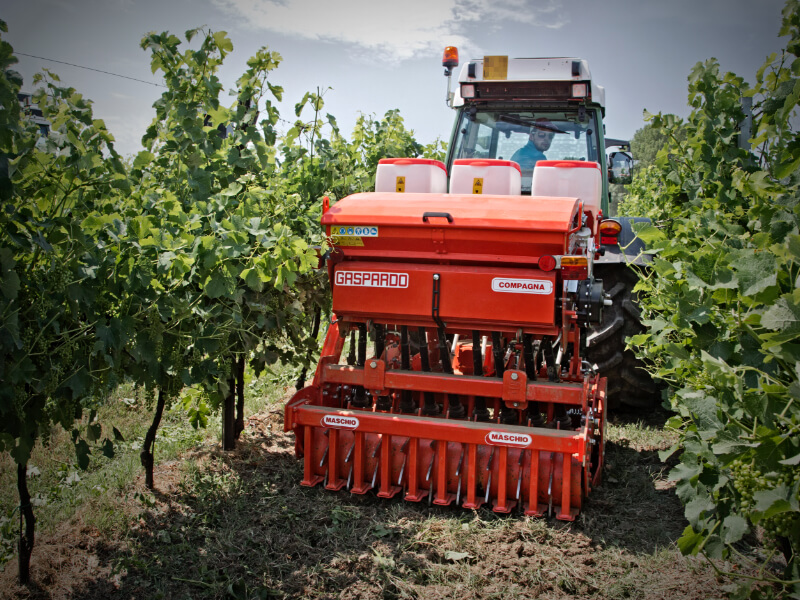

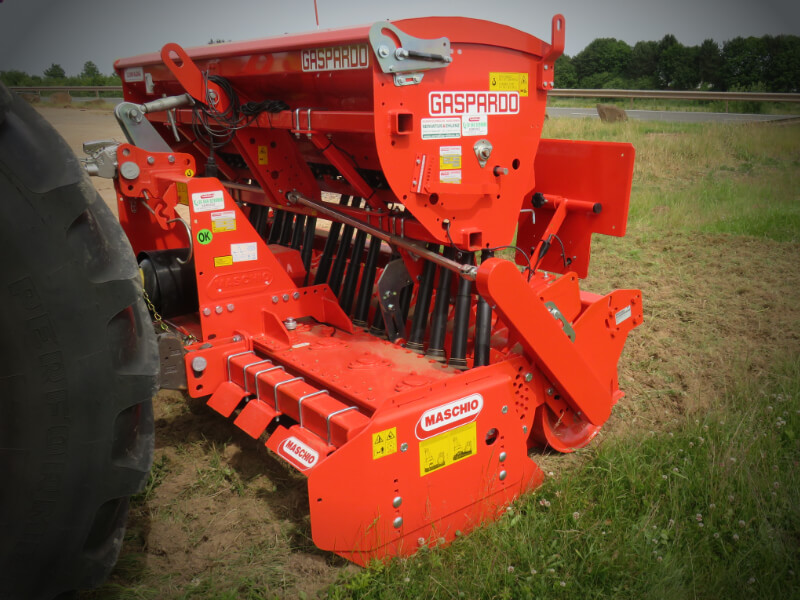

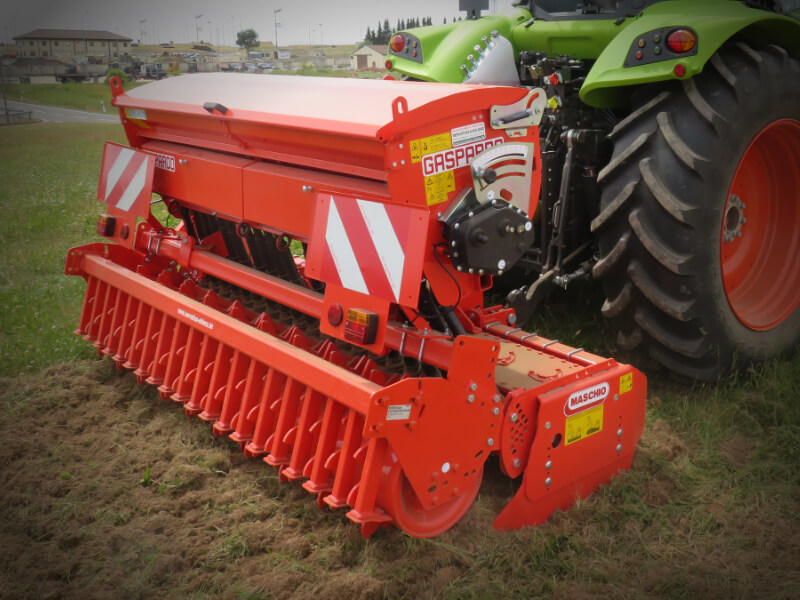

Versatility in combination with seed drill
DELFINO can be combined with COMPAGNA seed drill, becoming an ideal tool for sowing cover crops and grassing vineyards. Available in the version from 1,5 to 3 m, it can also be used for sowing grain crops in open fields.
Special contents
NUMBER OF ROTORS
Rotor shafts are spaced 25 cm from each other (very narrow space compared to that of some competitors). The 4 rotors per metre ensure an excellent preparation of the seeding bed, even on tough and clayey soils.

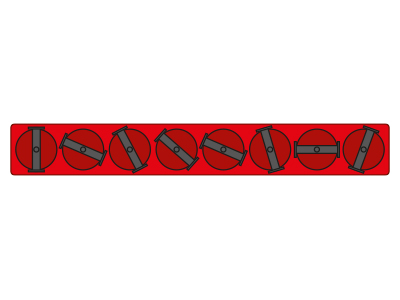

LOW VIBRATIONS
The particular position of the rotors with diversified angles allows to gradually enter the ground, reducing the absorbed power, consumption and vibrations transmitted to the tractor. This results in longer component life and less maintenance.

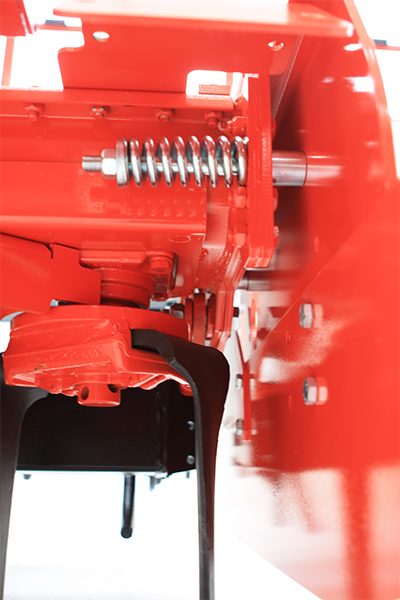

DAMPENED SIDE PROTECTIONS
Thanks to a spring system, it is possible to increase the side excursion of the containment panels. The spring can be easily adjusted via shear-pin.
