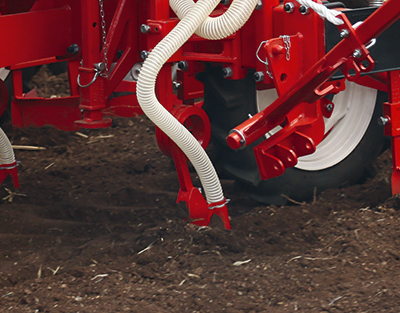

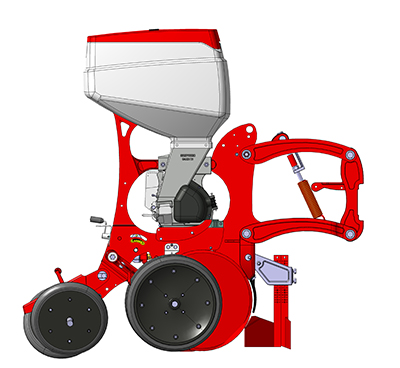

MTR planting unit with short parallelogram and front clod pusher
ISOTRONIC electronic transmission seeding distributors
Complies with ISO 11783 standard
ISOBUS GENIUS MASTER system
Cable 7 pin ISO 11786 for the tractor speed signal transmission
"V” shaped rubber press wheels (specify type)
1 seed plate, with brass pins, for each unit (specify seed)
Seed knocker for sugarbeet

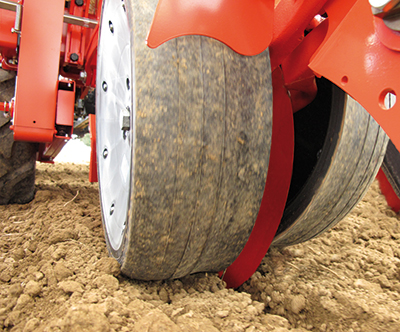

22x11.0-10 support or transmission wheels
3-point hitch with floating 1st and 2nd points, cat. II^
Mechanical safety frame opening and closing

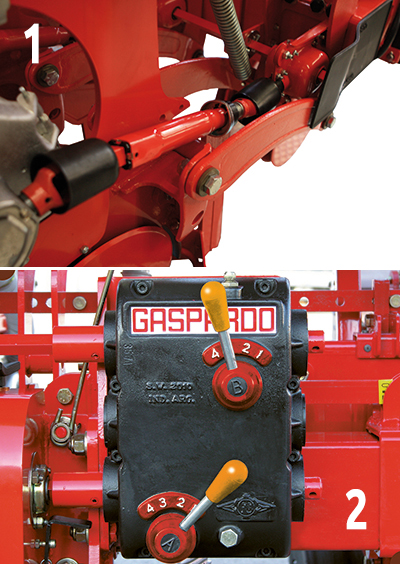

B1 1” 3/8 Z6-Z6 PTO shaft length 700 (version without BBX)
R2 1’’3/8 Z6-Z6 length 930 free wheel PTO shaft (version with BBX)

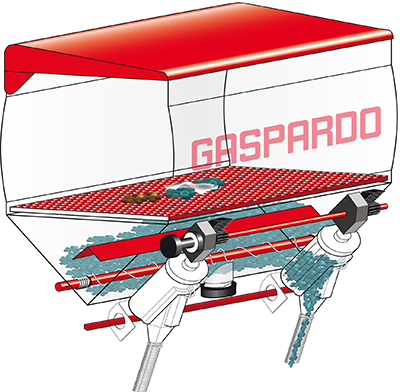

Centralized SPEEDY SET adjustment for MINIMAX fertilizer meters
Hopper windows for fertilizer level control
Pneumatic fertilizer kit for external rows
Bee safeguarding deflector hoses
Light kit (disassembled)
Warning boards (disassembled)
30 l capacity microgranulator hoppers (version with microgranulator)
Hydraulic row marker track in center and on wheel
Removable side rail frame (for 8 - 9 row versions)
7 rows version are convertible to 6 rows 70-80 cm
9 rows version are convertible to 8 rows 70-80 cm
Versions with micro equipped with 1 removable step.
Versions with fertilizer equipped with 2 fixed steps.
Versions with fertilizer and micro equipped with 2 fixed steps and 1 removable step.
